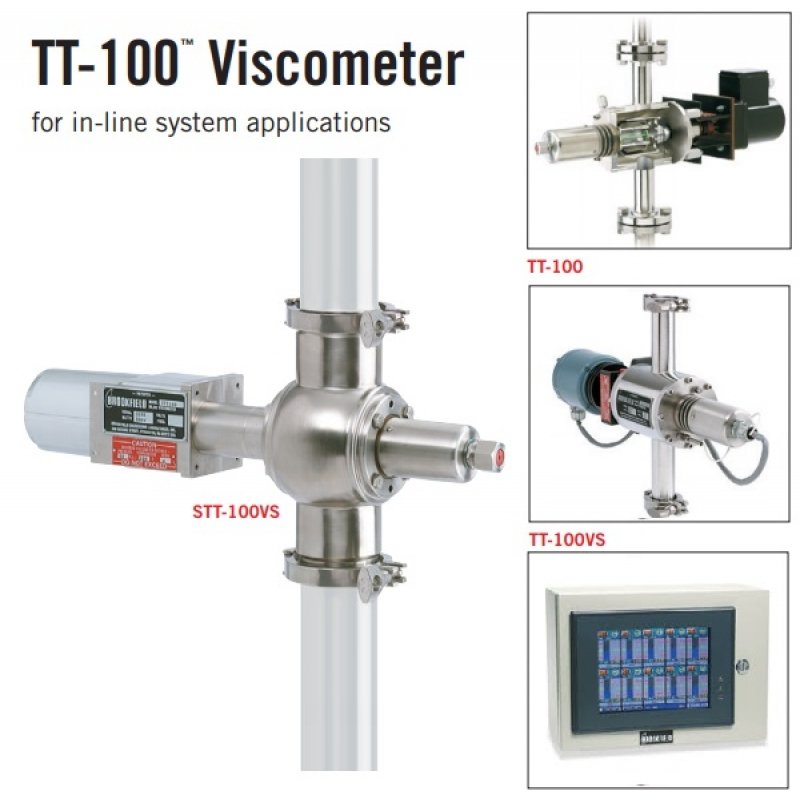

TT-100 Viscometer

Now available with IECEx, ATEX, and North American Explosion-proof Certifications.

The TT-100 In-Line Viscometer is designed to provide years of trouble-free service in closed loop systems which require constant monitoring and associated control of product viscosity.

FEATURES AND BENEFITS

• Continuous measurement eliminates need for “Grab” sampling and allows for prediction and constant control of final product properties
• Concentric cylinder geometry (Couette type) provides viscosity measurements at defined shear conditions
• Defined shear means agreement with Brookfield Laboratory measurements at equivalent shear rates
• Constant or variable speed motors available
• 4-20 mA output signal provides a variety of display and control capabilities
• Capable of a wide range of pressures, temperatures, viscosities, flow and shear rates
• Measurement “Zone” is protected from main flow, allowing accurate, repeatable measurement under variable conditions
• Mounts in-line supported by connections: Available in 1″, 1½”, 2″, or 4″ pipeline connections; sanitary, threaded or flanged
• Easy to check and maintain calibration
• Can be operated at shear rates of 511 sec-1 as required by the Standards of the American Petroleum Institute (API)
• Use in hazardous locations worldwide with optional IECEx, ATEX, and North American explosion-proof certifications

SPECIFICATIONS

• Viscosity Range: 10 – 500,000 (cP/mPa·s)
• Speeds: Single speed: application specific
• Input Power: 115 Vac: 50/60 Hz 230 Vac: 50/60 Hz 24 VDC
• Output: 4 – 20 mA
