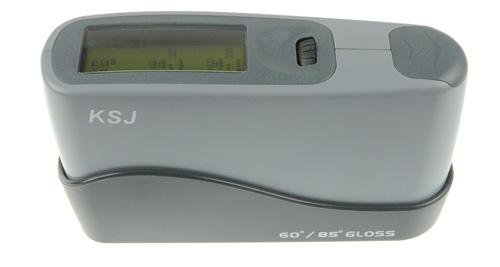

MG68-F2 is an intelligent glossmeter with memory storage, RS232 interface and software. It can auto-diagnose, auto-calibrate and inquire memory.
Specifications
| Measurement range | 60°: 0 – 1000 Gu 85°: 0 – 160 Gu |
|---|---|
| Deviation | ±1.5 Gu or ±1.5% |
| Measuring area | 9 x 16 / 5 x 39 mm2 |
| Measurement angle | 60 ° / 85° |
| Dimension | 155 x 48 x 75 mm3 |
| Weight | 400 g |
| Power supply | 1 x AA size battery |
Applications
- All kinds of coating and finishing surfaces, such as paints, varnishes, printing ink, etc.
- Decorative materials, such as marble, granite, polishing brick, ceramic tile and so on
- The other kinds of materials and objects, such as plastic, wooden ware, paper, etc.
- All kinds of metallic materials and their coatings
Features
- Interface: Serial RS 232
- Software: KSJ Data Operator included
- Memory: 10000 measurements or 999 data groups
- Power Supply: A single battery only. AA size, rechargeable or alkaline
- Comes Complete With: main device, holder with working standard, traceable certificate, KSJ Data Operator software, cable for PC serial port, USB adapter (optional), user's manual, carrying bag.
