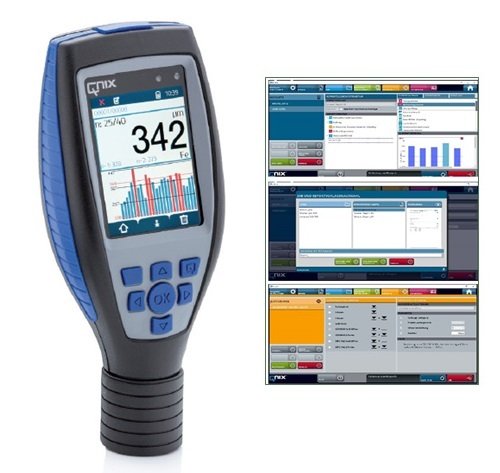

Qnix 9500

QNix® 9500 coating thickness gauge suitable to measure the thickness of coatings on metal substrate (Fe/Nfe)

ROBUSTNESS AND RESISTANCE

• For long and reliable use, even under harsh conditions
• Fibreglass reinforced, 5 piece casing with IP65 dust and splash water protection
• Three layer protection to absorb shocks
• LCD glass providing resistance against scratches and chemicals (Level H6)
• Operational temperature from -20 °C to +70 °C

SAFETY BY PRECISION AND TRUENESS

• For valid results in quality assurance
• High measuring trueness over the entire range
• Very high repeatability of measured results
• Easy adjustment on rough, smooth or curved substrates

TIME SAVING BY ERGONOMICS

• Fast and fatigue proof work even with continuous use
• Direct feedback from limit indicator in display and RGB-LED on the probe
• Luminosity IPS-LCD24°, colour, 600 lm, reading angle 70°
• Optimal readability of display even in direct sunlight, brightness can be adjusted automatically or manually
• Flip display 0°, 90°, 180°, 170°
• Large haptic keypad and low centre of gravity

FLEXIBILITY AND EXPANDABILITY

• Future-proof by changeable probes
• Gauge body suitable for Fe-, NFe- and dual-probes
• Quick change to cable probe
• Integrated probe and cable probe available in one device
• Increased readiness for use by quick change of probes
• Fast adaption to different measuring tasks

COMPREHENSIBILITY AND USER-FRIENDLINESS

• Intuitive operation saving time and money
• Easy adjustment
• Intuitive menu guidance for the gauge and software, report by 3 clicks
• Freely assignable key for individual fast access
• Pre-configured standards
