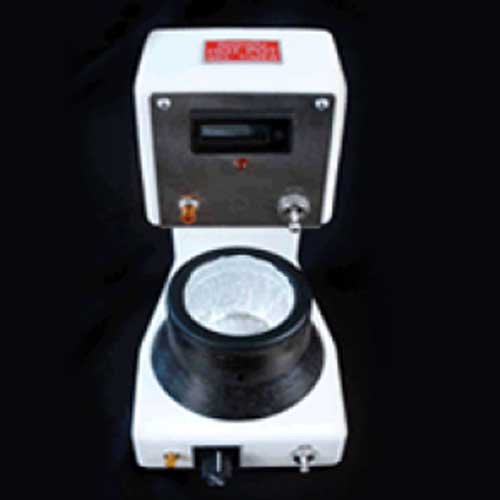

Gel Timer – HotPot

DETERMINES GEL TIME AT TEMPERATURES UP TO 350 DEGREES F

The Hot Pot line of Gel Timers incorporates all the quality features, simple operation, and accuracy of our original Gel Timer– and more! The Standard Hot Pot with a simple rheostat temperature controller. It uses a Teflon-lined aluminum pot and gel time can be determined at temperatures up to 350 degrees F.

SIMPLE TO OPERATE!

Set the control to the desired test temperature. Pour the material sample into the throwaway aluminum cup. Place the cup in the Hot Pot Gel Timer well, insert the throwaway wire stirrer and set the counter to “zero”. Switch on. When gelation occurs, read gel time and discard the cup and stirrer. The Hot Pot Gel Timer can be left on the full setting overnight without harm; however, unattended testing using heating capability is not recommended.

No mess! No tools required! No cleanup!

These durable gel timers or units use inexpensive, disposable wire stirrers and aluminum cups. No special skills are required.

Gel Timer Specifications:

Maximum recording time: 9999 minutes, 59 seconds (167 hours)

Minimum recording time: 1 second

Stir speed: 20 rpm

Accuracy: +/- 2%

Operating temperature: 125-350 deg. F (52-177 deg. C) +/-5% deg. C

Electrical requirements: 110v/60Hz, 220v/50Hz or 300 watt

Electrical connection: 3-wire grounded cord set

Dimensions: 7.5″ L x 9″ H x 5.5″ W

Weight: 9 pounds
